Spring Probe

Spring Probe

可設計/製造單針Single Probe / 雙針Kelvin Contact Pogo Pin探針，以滿足任何類型的測試座，並滿足各種測試產量之需求

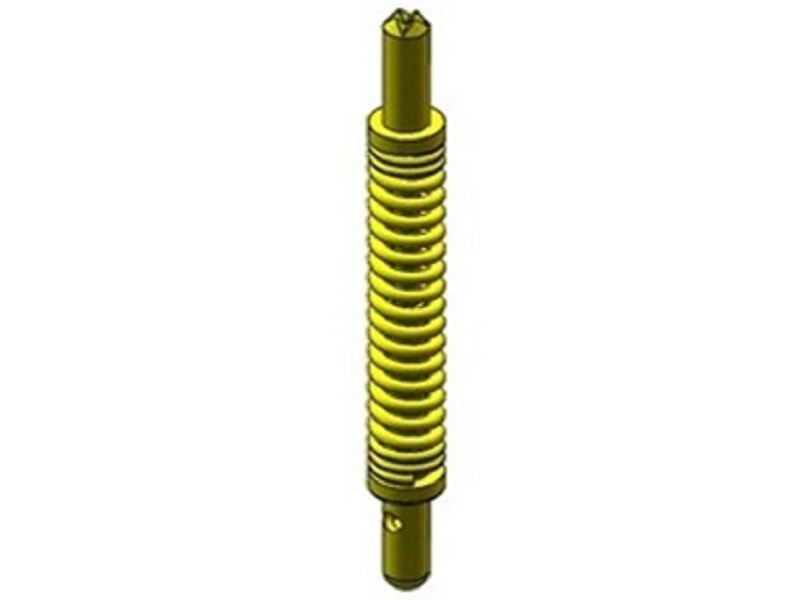

KV04-F

Socket Application	QFN/ DFN
Spring force	40g @ 0.5mm
Current	2A /20ms peak
Bandwidth	4 Ghz @ -1dB
Top Plunger	SK4 / with hard gold plating(2.5 um) over Nickel Bottom
Plunger B	SK4 / with hard gold plating(2.5 um) over Nickel Bottom
Spring	SUS (SWP) flashed with gold over Nickel
DC Resistance	50mΩ

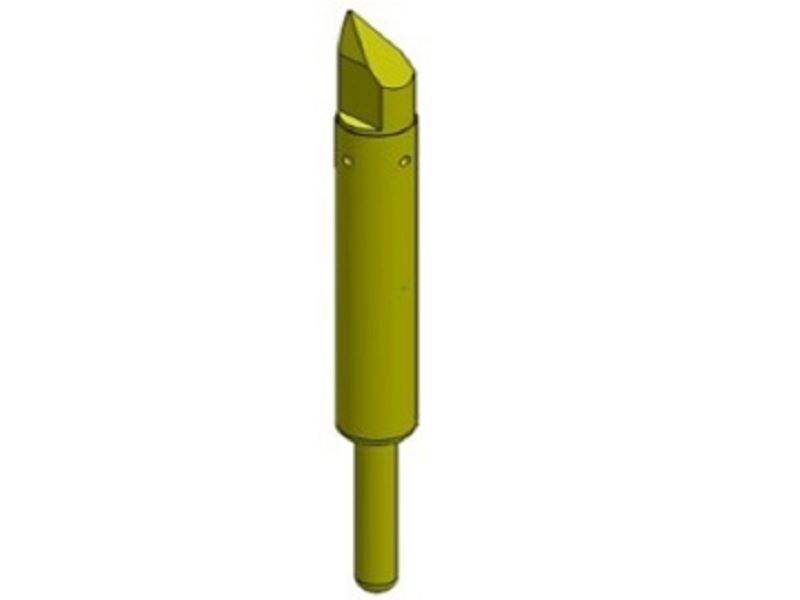

KV04-FT

Socket Application	QFN/SOP
Spring force	50mΩ
Current	5A /20ms peak
Bandwidth	4 Ghz @ -1dB
Top Plunger	SK4 Gold Plated Bottom
Plunger B	BeCu Gold Plated Barrel : P.B Gold Plated
Spring	SUS Gold Plated
DC Resistance	50mΩ

P04

Socket Application	QFN/DFN
Spring force	30g @ 0.5mm
Current	1A Peak
Bandwidth	4 Ghz @ -1dB
Top Plunger	SK4 / with hard gold plating(2.5 um) over Nickel Bottom
Plunger B	BeCu / with hard gold plating(2.5 um) over Nickel
Spring	SUS (SWP) flashed with gold over Nickel
DC Resistance	50mΩ
