TR3000i

TR3000i : Tray-Based Vision Solutions

The TR3000i comes with built in taping module and 7 nozzles for faster unit pickup which translates to higher throughput of up to 25K (tray to reel)

	TR3000i
Package Inspected	BGA, QFP, QFN, CSP, TSOP, MSOP, SOP
Package Size	2mm x 2mm to 120mm x 120mm
Tape Range	8mm to 56mm
Handling Mechanism	Tray to Tape & Reel or Tray to Tray
UPH	Up to 25K
Taping Module Conversion Time	< 20 mins
De-Taping	Built-in De-Taping

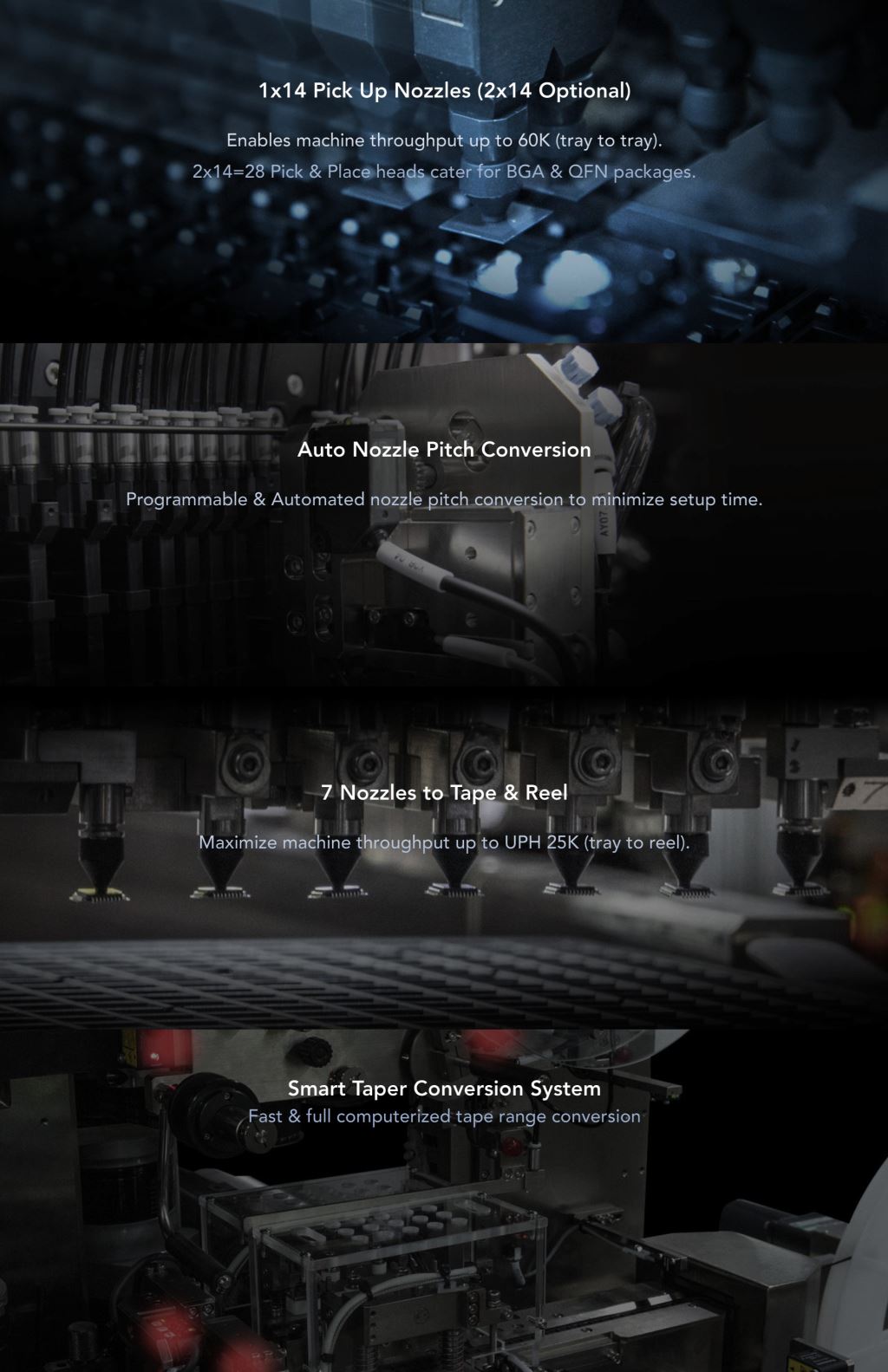

Pick-up Heads	1 x 14 (2x14 Optional), 7 nozzles to tape and reel
Vision Inspection	3D vision inspection, Leaded Packages Inspection, Ball Packages Inspection, Leadless Packages Inspection, Top 3D POP Inspection, 2D Barcode Inspection, Mark Inspection, Package Vision Inspection, Passive Component Inspection, 6S Color Inspection, In-tape Top Mark Inspection
Machine Dimensions (mm)	1935(H) x 2880(W) x 1740(L)

Features

Tray-Based Vision Solution

Automatic Tray to Tape & Reel 2D, 3D, Ball, Leadless Package & Passive Component Inspection System.

BENEFITS

High Speed Tray to Tray Inspection
High Performance With Ease of Operation
Automatic Reject Sorting Capability
Quick Conversion Time
Low Maintenance Cost
