V910i

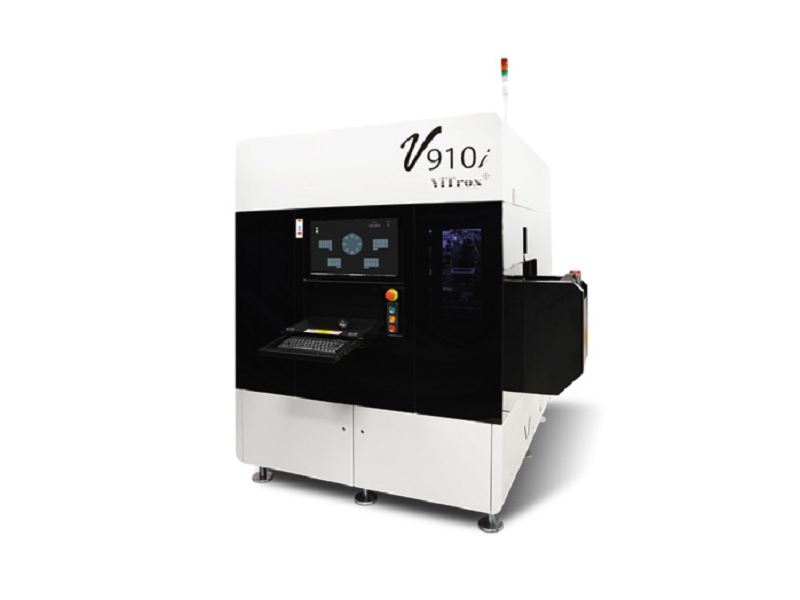

V910i : Advanced Robotic Vision System (ARV)

The V910i system is a next generation solution for the Final Product Inspection, specifically designed for SSD Inspection with 3X higher inspection throughput.

Functionality	V910i
Operating system	Label defects (bubble, incorrect label, misalignment, empty, peel off, contamination, orientation, missing, incorrect printing, printing misalignment, printing quality & scratch), housing scratch, housing assembly gaps, screw damaged, screw missing, wrong screw, gold finger lifted and contamination.
Inspected Devices	SSD (Various types of 1.8”, 2.5” & M.2 drives), Modular Device
No. of Inspection Surfaces	6 sided surface inspection
Throughput	Up to 400 UPH

System Dimensions
Footprint	W: 2115 mm x D: 1730 mm x H: 2040 mm
Weight	~ 1600 kgs

Hardware Systems
Vision Camera	4 x 4 mega pixels color cameras; 22µm & 27µm per pixel resolution
Vision Lighting	Coaxial Lights, Ring Lights & Bar Lights
Computer System	Workstation; Intel Xeon Processor; 16GB RAM; 1 x 500GB SATA HDD; 1 X 120GB SSD HDD; 21 inch wide screen monitor
Graphic Card	Nvidia GeForce GTX 960
Host Protocols	10/100/1000-Base Ethernet; TCP/IP or MS Network
Device Input Form	JEDEC tray (up to 14 trays)
Device Output Form	JEDEC tray (up to 15 trays); 2 Reject Trays
Pick and Place Mechanism	SCARA Robot
Indexing Mechanism	High Speed Direct-drive Turntable
